طريقة تفعيل جهاز تتبع المركبات عن طريق الرسائل النصية FMB920 SMS Commands ويعتبر جهاز FMB920 الأخ الأصغر لجهاز FMB120 من شركة Teltonika ويتميز بصغر حجمه وصلابته
لتفعيل أجهزة التتبع والحصول على برنامج تتبع مميز تواصل معنا على واتساب +966570960313
طريقة إرسال الأوامر بالرسائل النصية: <login><space><password><space>setparam (في حال عدم وجود اسم مستخدم وكلمة مرور ادخل مسافتين قبل الأمر)
FMB920 SMS Commands: GPRS Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 1000 Uint32 300 30 259200 Seconds Open link timeout 1001 Uint16 30 5 300 Seconds Response timeout 1002 Uint8 0 0 1 0 – Newest Sort by 1 – Oldest 1003 Uint16 0 0 300 Seconds Network ping timeout Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 2000 Uint8 1 0 1 0 – Disable GPRS context 1 – Enable 2001 Char “” 0 32 String APN 2002 Char “” 0 32 String APN username 2003 Char “” 0 32 String APN password Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 2004 Char “” 0 55 String Domain 2005 Uint16 0 0 65535 Number Port 2006 Uint8 1 0 1 0 – TCP Protocol 1 – UDP Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 2010 Uint8 0 0 3 0 – Disable Backup Server Mode 1 – Backup 2 – Duplicate 3 – EGTS 2007 Char “” 0 55 String Backup Server Domain 2008 Uint16 0 0 65535 Number Backup Server Port 2009 Uint8 0 0 1 0 – TCP Backup Server Protocol 1 – UDP Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 13003 Uint8 1 0 1 0 – Disable FOTA WEB Status 1 – Enable 13000 Char fm.teltonika.lt 0 55 String FOTA WEB Domain 13001 Uint16 5000 0 65535 Number FOTA WEB Port 13002 Uint16 720 30 65535 Number FOTA WEB Period

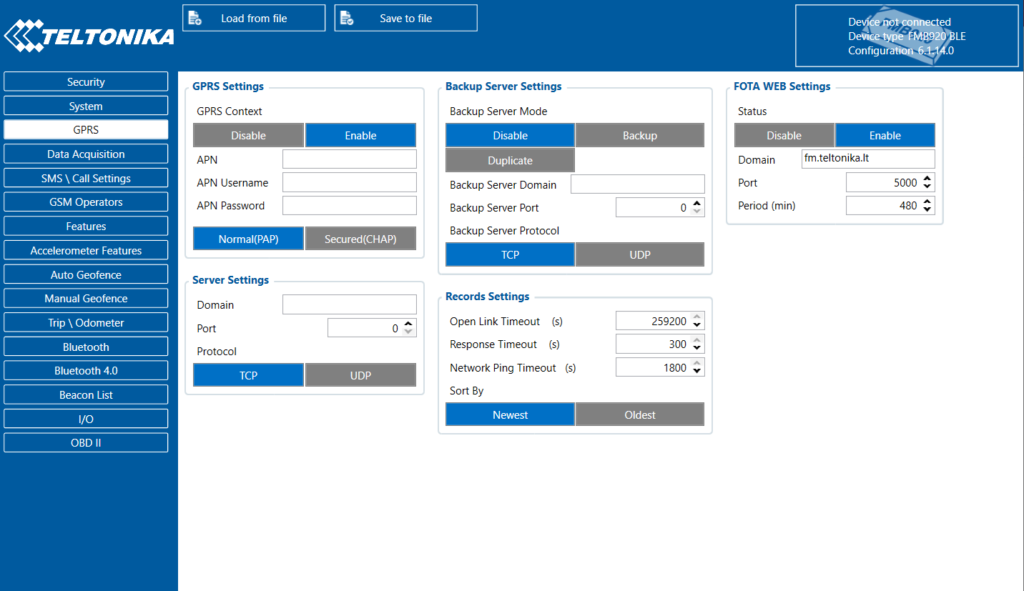

GPRS FMB920 SMS Commands FMB920 Configuration Software: GPRS Page إقرأ أيضا:
FMB920 SMS Commands: System Paramaters Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 138 Uint8 0 0 8 1 – Ignition Movement source 2 – Accelerometer 4 – GNSS 8 – CAN Speed 133 Uint8 0 0 1 0 – GNSS Speed Source 1 – OBD / CAN 106 Uint8 1 0 1 0 – Disable Static navigation 1 – Enable 112 Uint8 1 0 3 1 – Movement Static navigation source 2 – Ignition 3 – Movement and Ignition 107 Uint8 2 0 2 0 – After Position Fix Send/Save records without TS 1 – Always 2 – After Time Sync 108 Uint8 1 0 1 0 – Disable LED Indication 1 – Enable 109 Uint8 10 1 15 0 – Undefined GNSS source 1 – Beidou only 2 – Glonass only 3 – Glonass and Beidou not allowed 4 – Galileo only 5 – Galileo and Beidou 6 – Galileo and Glonass 7 – Galileo, Glonass and Beidou not allowed 8 – Gps only 9 – Gps and Beidou 10 – Gps and Glonass 11 – Gps, Glonass and Beidou not allowed 12 – Gps and Galileo 13 – Gps, Galileo and Beidou 14 – Gps, Galileo and Glonass 15 – Gps, Galileo, Glonass and Beidou and not allowed 110 Uint8 0 0 1 0 – On need Battery charge mode 1 – After ignition on 113 Uint8 0 0 1 0 – Codec 8 Data Protocol 1 – Codec 8 Extended 135 Uint8 0 0 1 0 – DIN2/AIN1 Input mode 1 – Ground Sense Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 102 Uint8 2 0 4 0 – Disable Sleep settings 1 – GPS sleep 2 – Deep sleep 3 – Online Deep sleep 4 – Ultra Deep sleep 6 – Power Off sleep (only for FMB965 )103 Uint16 1 1 3000 Minutes Timeout Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 101 Uint8 4 1 14 1 – DIN 1 Ignition settings 2 – Accelerometer 3 – Digital Input or Accelerometer 4 – Power Voltage 5 – Digital Input or Power Voltage 6 – Accelerometer or Power Voltage 7 – Digital Input, Accelerometer, or Power Voltage 8 – Engine RPM 9 – Digital Input or Engine RPM 10 – Accelerometer or Engine RPM 11 – Digital Input, Accelerometer or Engine RPM 12 – Power Voltage or Engine RPM 13 – Digital Input, Power Voltage or Engine RPM 14 – Accelerometer, Power Voltage or Engine RPM 104 Uint16 30000 0 30000 mV High voltage 105 Uint16 13200 0 29999 mV Low voltage Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 19001 Uint16 5 1 60 Seconds Movement Start Delay 19002 Uint16 60 5 300 Seconds Movement Stop Delay Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 900 Uint8 1 0 3 0 – Gps only Synchronization settings 1 – NITZ and NTP 2 – NTP 3 – NITZ 901 Uint8 0 0 24 Hours NTP Resync 902 Char “avl1.teltonika.lt” 0 55 String NTP server 1 903 Char “pool.ntp.org” 0 55 String NTP server 2 Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 169 Uint8 2 0 2 0 – Disabled Accelerometer Auto Calibration 1 – Once 2 – Continuous 170 Uint8 1 0 1 0 Disabled Gravity Filter 1 Enabled

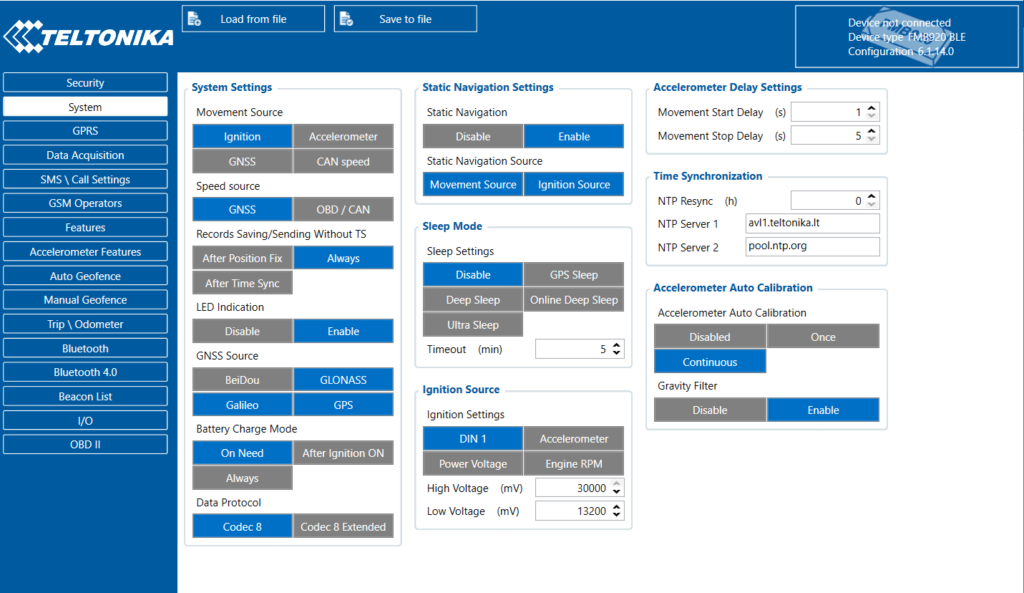

FMB920 SMS Commands System Parameters FMB920 Configuration Software: System Page FMB920 SMS Commands: SMS & CALL Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 3000 Uint8 0 0 1 0 – Disable Allow SMS data sending 1 – Enable 3001 Char “” 0 16 String Data Send Number Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 3003 Char “” 0 5 String Login 3004 Char “” 0 5 String Password 3006 Uint16 UTC+00:00 UTC-12:00 UTC+13:00 Time zone SMS event Time Zone Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 3005 Uint8 0 0 4 0 – Do nothing Incoming call action 1 – Hangup 2 – Report position 3 – Spy call 4 – Auto answer Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 3007 Uint8 0 0 7 (3 for FMB125) 0 – Disable Outgoing call trigger 1 – DIN1 2 – Crash event 3 – DIN1 and Crash event 4 – DIN2 5 – DIN1 and DIN2 6 – DIN2 and Crash event 7 – DIN1, DIN2 and Crash event 3008 Uint8 0 0 10 GSM number GSM number index Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 4000-4199 Char “” 0 16 String Authorized number Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 6000-6009 Char “” 0 16 String Predefined number
FMB920 SMS/Call Settings FMB920: GSM Operators FMB920 SMS Commands: GSM operators Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 5000-5049 Uint32 0 0 999999 Number SIM1 roaming operator list 9500-9549 Uint32 0 0 999999 Number SIM2 roaming/home operator list 5500-5549 Uint32 0 0 999999 Number Operator blacklist

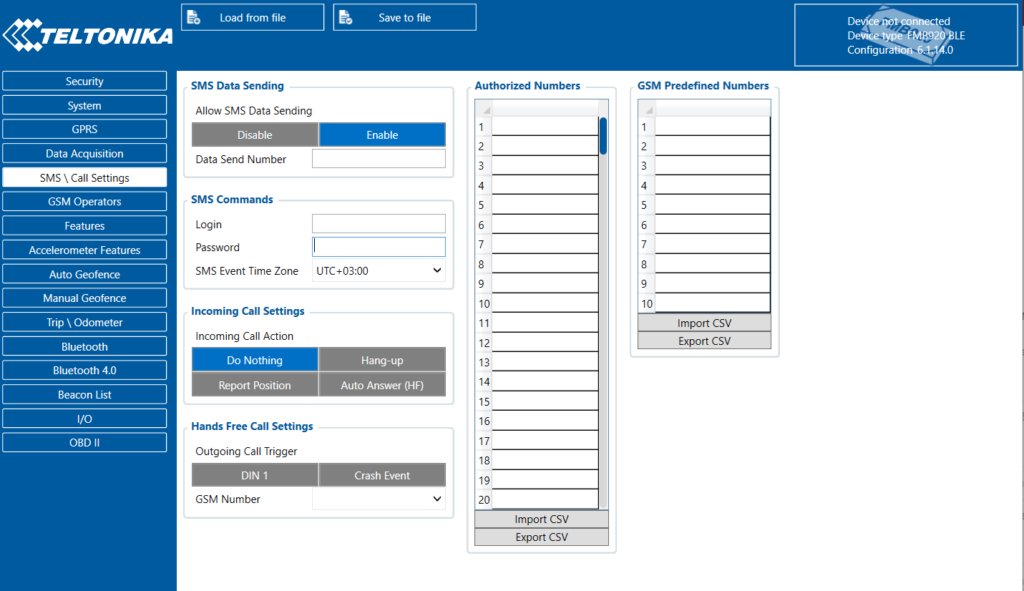

FMB920 SMS Commands GSM Operators FMB920 Configuration Software: SMS & Call Page FMB920 SMS Commands: Data Acquisition Home Network GSM operator code “Vehicle on STOP” parameters Parameter ID Parameter Type Default value Value range Parameter name Min Max 10000 Uint16 3600 0 2592000 Min Period 10004 Uint8 1 1 255 Min Saved Records 10005 Uint16 120 0 2592000 Send Period Home Network GSM operator code “Vehicle MOVING” parameters Parameter ID Parameter Type Default value Value range Parameter name Min Max 10050 Uint16 300 0 2592000 Min Period 10051 Uint16 100 0 65535 Min Distance 10052 Uint8 10 0 180 Min Angle 10053 Uint8 10 0 100 Min Speed Delta 10054 Uint8 1 1 255 Min Saved Records 10055 Uint16 120 0 2592000 Send Period Roaming Network GSM operator code “Vehicle on STOP” parameters Parameter ID Parameter Type Default value Value range Parameter name Min Max 10100 Uint16 3600 0 2592000 Min Period 10104 Uint8 1 1 255 Min Saved Records 10105 Uint16 0 0 2592000 Send Period Roaming Network GSM operator code “Vehicle MOVING” parameters Parameter ID Parameter Type Default value Value range Parameter name Min Max 10150 Uint16 300 0 2592000 Min Period 10151 Uint16 100 0 65535 Min Distance 10152 Uint8 10 0 180 Min Angle 10153 Uint8 10 0 100 Min Speed Delta 10154 Uint8 1 1 255 Min Saved Records 10155 Uint16 0 0 2592000 Send Period Unknown Network GSM operator code “Vehicle on STOP” parameters Parameter ID Parameter Type Default value Value range Parameter name Min Max 10200 Uint16 3600 0 2592000 Min Period 10204 Uint8 1 1 255 Min Saved Records 10205 Uint16 120 0 2592000 Send Period Unknown Network GSM operator code “Vehicle MOVING” parameters Parameter ID Parameter Type Default value Value range Parameter name Min Max 10250 Uint16 300 0 2592000 Min Period 10251 Uint16 100 0 65535 Min Distance 10252 Uint8 10 0 180 Min Angle 10253 Uint8 10 0 100 Min Speed Delta 10254 Uint8 1 1 255 Min Saved Records 10255 Uint16 0 0 2592000 Send Period

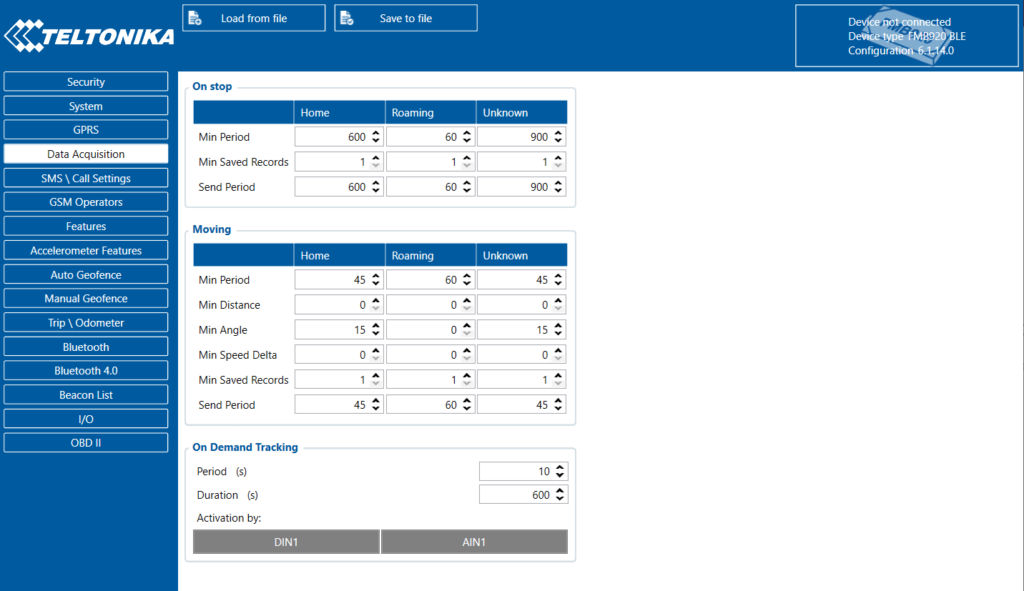

FMB920 SMS Commands Data Acquisition FMB920 SMS Commands Acquisition FMB920 SMS Commands Features FMB920 SMS Commands: Green driving parameters Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 11000 Uint8 0 0 3 0 – Disable Scenario settings 1 – Low priority 2 – High priority 3 – Panic priority 11004 Uint8 2.5 0.5 10 m/s2 Max acceleration 11005 Uint8 2.7 0.5 10 m/s2 Max braking 11006 Uint8 3.4 0.5 10 m/s2 Max cornering 11007 Uint8 0 0 1 0 – GPS Source 1 – Accelerometer 11008 uint8 0 0 1 Enable/Disable Duration 11003 Uint8 0 0 2 (1 for FMB125) 0 – None Output control 1 – DOUT 1 2 – DOUT 2 11001 Int32 200 100 5000 Milliseconds DOUT ON duration 11002 Int32 200 0 5000 Milliseconds DOUT OFF duration 7034 Uint8 0 0 10 Phone number Send SMS to 8034 String “Green Driving” 0 160 Text Sms text FMB920 SMS Commands Overspeeding scenario parameters Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 11100 Uint8 0 0 3 0 – Disable Scenario settings 1 – Low priority 2 – High priority 3 – Panic priority 11104 Uint16 90 0 260 km/h Max speed 11103 Uint8 0 0 2 (1 for FMB125) 0 – None Output control 1 – DOUT 1 2 – DOUT 2 11101 Int32 200 100 5000 Milliseconds DOUT ON duration 11102 Int32 200 0 5000 Milliseconds DOUT OFF duration 7032 Uint8 0 0 10 Phone number Send SMS to 8032 String “Overspeeding” 0 160 Text Sms text FMB920 SMS Commands: Jamming scenario parameters Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 11300 Uint8 0 0 3 0 – Disable Scenario settings 1 – Low priority 2 – High priority 3 – Panic priority 11303 Uint8 1 0 1 0 – Disable Eventual records 1 – Enable 11304 Uint8 0 0 2 (1 for FMB125) 0 – None Output control 1 – DOUT1 2 – DOUT2 11301 Int32 200 100 5000 Milliseconds DOUT ON duration 11302 Int32 200 0 5000 Milliseconds DOUT OFF duration 11305 Uint16 60 0 65535 Seconds Timeout Immobilizer scenario parameters Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 11700 Uint8 0 0 3 0 – Disable Scenario settings 1 – Low priority 2 – High priority 3 – Panic priority 11701 Uint8 1 0 1 0 – Disable Eventual records 1 – Enable 11702 Uint8 0 0 2 (1 for FMB125) 0 – Disable Output control 1 – Enable (DOUT 1) 2 – Enable (DOUT 2) 11703 Uint8 0 0 1 0 – Disable iButton list check 1 – Enable 7140 Uint8 0 0 10 Phone number Send SMS to 8140 String “Immobilizer” 0 160 Text Sms text 60068 Uint16 30 1 65535 Seconds Ignition Off timeout 60076 Uint8 0 0 1 0 – Disable Alcotester Check 1 – Enable 60077 Double 0.4 0 4 ‰ BAC Threshold 11708 Uint8 1 0 1 0 – Disable Blood Alcohol Content Event 1 – Enable 7268 Uint8 0 0 10 Phone number Send SMS to 8268 String “Blood” Alcohol Content” 0 160 Text Sms text DOUT control via call scenario parameters Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 12000 Uint8 0 0 2 (1 for FMB125) 0 – None Digital Output control 1 – DOUT 1 2 – DOUT 2 12001 Uint8 0 0 3 (1 for FMB125) 0 – None DOUT deactivation 1 – DIN 1 2 – DIN 2 3 – DIN 3 12002 Int32 5 0 2147483647 Seconds Duration timeout DOUT 1 Output type Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 60067 Uint8 0 0 1 0 – Normal Digital Output control 1 – Inverted iButton read notification Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 11704 Uint8_t 0 0 3 0 – Disabled Digital Output control 1 – DOUT 1 2 – DOUT 2 (FMB120) 3 – DOUT 3 (only for FMB130) 11705 Uint16_t 200 100 50000 Milliseconds DOUT duration 11706 Uint8_t 0 0 1 0 – Disabled iButton notification list 1 – Enabled 11707 Uint8_t 0 0 1 0 – Disabled Depend on ignition 1 – Enabled
FMB920 SMS Commads: Features Parameters FMB920 SMS Commands: Accelerometer FMB920 SMS Commands: Unplug Detection Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 11500 Uint8 0 0 3 0 – Disable Scenario setting 1 – Low priority 2 – High priority 3 – Panic priority 11501 Uint8 1 0 1 0 – Disable Eventual records 1 – Enable 11502 Uint8 1 0 1 0 – Simple Detection mode 1 – Advanced 7036 Uint8 0 0 10 Phone number Send SMS to 8036 String “Unplug” 0 160 Text Sms text Towing Detection Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 11600 Uint8 0 0 3 0 – Disable Priority 1 – Low priority 2 – High priority 3 – Panic priority 11601 Uint8 1 0 1 0 – Disable Eventual records 1 – Enable 11602 Uint16 5 0 65535 Minutes Activation timeout 11603 Uint8 0 0 60 Seconds Event timeout 11604 Uint8 0 0 10 Phone number Make call to 11605 Double 0.22 0.1 5 mG Threshold 11606 Double 1 0.1 5 Degrees Angle 11607 Uint16 1000 1 5000 Milliseconds Duration 7035 Uint8 0 0 10 Phone number Send SMS to 8035 String “Towing” 0 160 Text Sms text FMB920 SMS Commands: Crash Detection Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 11400 Uint8 0 0 3 0 – Disable Scenario setting 1 – Low priority 2 – High priority 3 – Panic priority 11401 Uint8 5 0 1000 Milliseconds Duration 11402 Uint16 1500 0 7900 mG Threshold 11406 Int8 0 0 1 0 – Disable Crash trace 1 – Enable 7037 Uint8 0 0 10 Phone number Send SMS to 8037 String “Crash” 0 160 Text Sms text FMB920 SMS Commands: Excessive Idling Parameter ID Parameter Type Default value Value range Value Parameter name Min Max 11200 Uint8 0 0 3 0 – Disable Scenario settings 1 – Low priority 2 – High priority 3 – Panic priority 11203 Uint8 1 0 1 0 – Disable Eventual records 1 – Enable 11205 Uint8 5 0 3600 Seconds Time to stoped 11206 Uint8 2 0 3600 Seconds Time to moving 11204 Uint8 0 0 2 (1 for FMB125) 0 – None Output control 1 – DOUT 1 2 – DOUT 2 11201 Int32 200 0 2147483647 Milliseconds DOUT ON duration 11202 Int32 200 0 2147483647 Milliseconds DOUT OFF duration 7033 Uint8 0 0 10 Phone number Send SMS to 8033 String “Idling Event” 0 160 Text Sms text
FMB920 SMS Commands: Accelerometer لمزيد من التفاصيل: Teltonika Wiki
