أكواد تفعيل SMS Commands GT06N جهاز تتبع المركبات

Concox - GT06N

GT06N Query SMS Commands

No.FunctionCommandReplyExplanation
1Check GT06N firmware versionVERSION#e.g.[VERSION]GT06B_10_8MM_B25_V11_LA [BUILD]2013/01/04 17:45
2Check GT06N parametersPARAM#e.g.
GPS report on time interval:
IMEI:868120103643505;TIMER:20,20; SENDS:5; SOS:13730454825,,;
Center Number:;Sensorset:10,1,5,1; Defense time:10;
TimeZone:E,8,0;

GPS report on distance interval:
IMEI:868120103643505;Distance:200; SENDS:5; SOS:13730454825,,;
Center Number:;Sensorset:10,1,5,1; Defense time:10;
TimeZone:E,8,0;

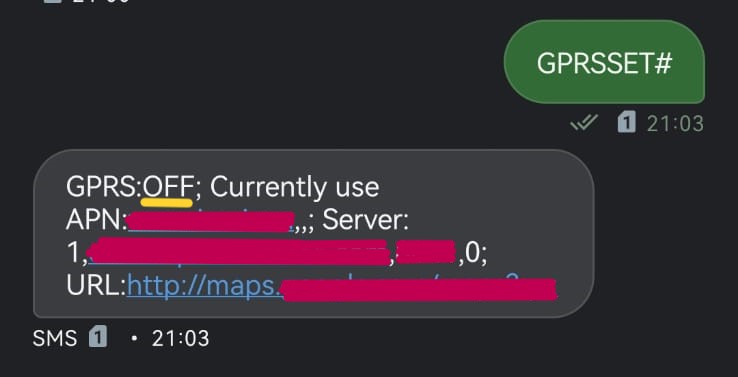

3Query GT06N network settingGPRSSET#e.g.GPRS:ON; APN:CMNET,,;
Server:1,hgt06.szdatasource.com,8841,0;
URL:http://maps.google.com/maps?q=;
4Check GT06N statusSTATUS#e.g.Battery:3.41V,Battery too low! Warning; GPRS:Link Up; GSM Signal
Level:Strong; GPS:Successful positioning, SVS Used in fix:10(11),
GPS Signal Level:32,31,32,31,28,29,29,36,32,33; ACC:OFF;
Defense:OFF
5Check position statusWHERE#e.g.Current position!
Lat:N22.577156,Lon:E113.916748,Course:0.00,Speed:0.00Km/h,Date
Time:2013-01-08 17:35:32
6Check URLURL#e.g.<01-08
17:36>http://maps.google.com/maps?q=N22.577156,E113.916748
7Check positionPOSITION#
OR
123
e.g.
GPS located: <01-08
17:36>http://maps.google.com/maps?q=N22.577156,E113.916748
GPS not located: GPS not fixed, please wait for a while, and then try again.
8Check geo fence statusFENCE#e.g.FenceType:Circle, ON, Latitude:N22.577091,
Longitude:E113.916748, radius:600m, in out:IN or OUT, alarm type:1
FenceType:Circle, OFF, Latitude:0.000000, Longitude:0.000000,
radius:0m, in out:IN or OUT, alarm type:1
9Check moving statusMOVING#e.g.Moving Switch:OFF; Radius:300m; Alarm type:1
Moving Switch:ON; Lat:N22.577080; Lon:E113.916794; Radius:300m;
Alarm type:1
GT06N Query SMS Commands

GT06N Settings SMS Commands

No.FunctionCommandReplyExplanation
GT06N SETTING CLASS

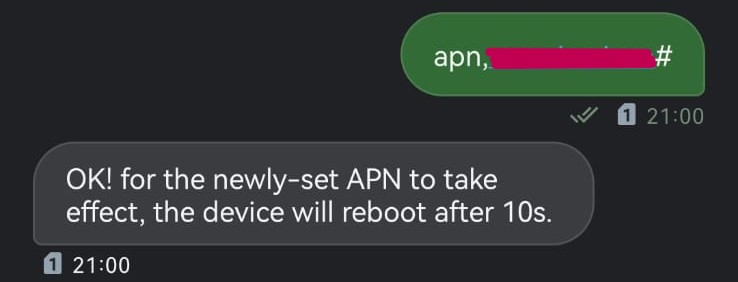

1Set APN
APN, [apnname]#
OR
APN, [apnname],[user],[pwd]#
Close automatic APN and set by yourself.
APN#Check the current APN parameters.
2Set automatic APNASETAPN, [X]#X=ON/OFF;
ON: open automatic APN;
OFF: close automatic APN.
ASETAPN#Check automatic APN status

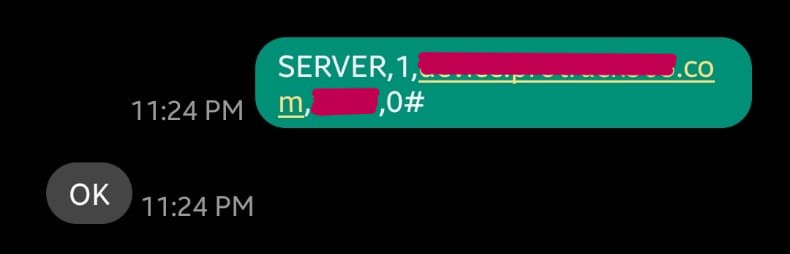

3Set server parametersSERVER,mode,domainName/IP,port,protocol#eg: SERVER,1,www.ydpat.com,8011,0#
SERVER,0,211.154.135.113,8011,0#
mode = 1 means set with domain name
mode = 0 means set with ip address

protocol = 0 means connect server with TCP protocol
protocol = 1 means connect server with UDP protocol
SERVER#Check the current sever parameters
4Set GMT parameter For GT06NGMT,[A],[b],[C]#A:E or W;”E” means eastern time zone, “W” means western time zone;default:E
B:0~12;time zone default:8
C:0/15/30/45;half time zone;default:0
GMT#Check the current time zone parameters
5Restore GT06N to factoryFACTORY#Restore to factory setting
6Edit URLEURL,network links#set the network links for latitude and longitude, default: http://maps.google.com/maps?q=
EURL#Check the current URL
7GPRS switchGPRSON,X#X=0 or 1;”1″ means GPRS ON, “0” means GPRS OFF, default:1
GPRSON#Check the current GPRS status
8Reboot GT06NRESET#The device would reboot in 20S after receiving the command.
9GPRS blocking alarmGPRSALM,X#X=ON/OFF, default: OFF
GPRSALM#Check the GPRS alarm status
10SOS settingSOS,A,[phone number 1][,phone number 2][,phone number 3]#Add SOS phone number.
SOS,D,[sequence number 1][, sequence number 2][,sequence number 3]#Delete the phone number according to the sequence number.
SOS,[D],[phone number]#Delete the matching SOS phone number.
SOS#Check the SOS phone number.
11Center phone number settingCENTER, A,[phone number]#Add center phone number.
CENTER, D#Delete center phone number.
CENTER#Check the center phone number.
12Heartbeat interval settingHBT,[T1],[T2]#T1 ranges 1~19(minutes), heartbeat package upload interval when ACC ON; default is 3;
T2 ranges 1~19 (minutes), heartbeat package upload interval when ACC OFF; default is 5;
HBT#Check the current parameters of T1 and T2.
13Set GPS data sending intervalTIMER,[T1],[T2]#T1 ranges 5~18000 or 0(seconds), upload interval when ACC ON, 0 means no upload, default is 10;
T2 ranges 5~18000 (seconds), upload interval when ACC OFF, default is 10;
TIMER#Check the current parameters of T1 and T2.
14Set distance interval of GPS data sendingDISTANCE,[D]#D ranges 50~10000 or 0(meters), distance interval, default is 300;
DISTANCE#Check the current distance interval.
15Set the angle uploadANGLEREP,[X][,A][,B]#X=ON/OFF, default:ON
A=5~180 degrees, diversion angle degree, default:30 degrees;
B=2~5 seconds, detecting time, default:3 seconds,
ANGLEREP,OFF#Close the angle upload.
ANGLEREP#Check the angle upload status and its parameters.
16Set the upload for ACC status changeACCREP,[A]#A=ON/OFF, upload for ACC status change, default: ON
ACCREP#Check the upload for ACC status change.
17Set the GPS data sending batchBATCH,[A][,N]#A= A=ON/OFF, data sending batch function on or off, default:OFF
N=1~50, N means the number of messages in the batch, default:10;
BATCH#Check the number of messages in a batch.
18Set the delay of the defenseDEFENSE,[A]#A= 1~60 (minute), delay of the defense, default:10 (minutes).
DEFENSE#Check the parameters of the defense.
19Set vibration sensor detecting timeSENSOR,<A>,[,B][,C]#A=10-300 seconds,detecting time. Default: 10 seconds
B-10-300 seconds, alert delay. Deault:180 seconds

C=1-3000 minutes, vibration alert interval. Default: 30 minutes
SENSOR# Check the parameter of the status
20Set the GPS controlled time by sensorSENDS,[A]#A=0-300(minute), time duration for GPS to work once vibration detected, 0 means GPS always on work, default: 5(minute)
SENDS#Check the parameters of the time.
21DisarmDSRESET#DSRESET# Cancel the current Arm status
22Clear the backup dataCLEAR#
23Set the static data filteringSF,[A][,B]#A=ON/OFF;static drift filtering switch;default: ON
B=10-1000(m);maximal filtering distance;default: 100(m);
SF#Check the parameters.
24Set the petrol/electricity controlRELAY,[A]#A=0/1;0 means connection, 1 means cut off;default: 0.
RELAY#Check the status of the control.
25Set delay time of voice monitorDELAY,<A>#A=0、5-18 seconds; Default: 10 seconds (Enter Listen-In after 10 senconds calling)
26Set the fence alarmFENCE,[B],0,[D],[E],[F],[X],[M]#circle area;
B=ON/OFF, open or close fence alarm, default:close;
D=the latitude of the circle center;
E=the longitude of the circle center;
F=1~9999, the fence radius, unit:100 meters;

X=IN/OUT;IN: alarming when get in the fence, OUT: alarming when get out the fence, blank means both alarming when get in or get out the fence, default: blank.
M=0/1;way of alarming, 0:GPRS only, 1:SMS+GPRS, default:1
FENCE,[B],1,[D],[E],[F],[G][,X][,M]#rectangle area
B=ON/OFF, open or close fence alarm, default:close;
D=the latitude of the position 1;range:-90 ~90(degree);
E=the longitude of the position 1;range:-180 ~180(degree);
F=the latitude of the position 2;range:-90 ~90(degree);
G=the longitude of the position 2;range:-180 ~180(degree);
the latitude supports “N/S” or “+/- ” coming before it’s value;
the longitude supports “E/W” or “+/- ” coming before it’s value;;
FENCE#Check the parameters of the fence.
27Set the vibration alarmSENALM,[A][,M]#A=ON/OFF, default: OFF;
M=0/1/2, way of alarming, 0 :GPRS only, 1: SMS+GPRS, 2 : GPRS+SMS+phone call, default:1
SENALM,OFF#Close vibration alarm
SENALM#Check the parameters of the alarm
28Set the power cut-off alarmPOWERALM, [A][,M][,T1][,T2]#A=ON/OFF, default:ON;
M=0/1/2, way of alarming, 0: GPRS only, 1: SMS+GPRS, 2 : GPRS+SMS+phone call, default:1;
T1=2~60 (second), default:5;
T2=1~3600 (second), default:300;
POWERALM, OFF#Close the power alarm.
POWERALM #Check the parameters of the alarm.
29Set the low battery alarmBATALM, [A][, M]#A=ON/OFF, default:ON;
M=0/1/2, way of alarming, 0: GPRS only, 1: SMS+GPRS, 2 : GPRS+SMS+phone call, default:1;
BATALM,OFF#Close the low battery alarm.
BATALM#Check the parameters of the alarm.
30Set the SOS alarmSOSALM,[A],[M]#A=ON/OFF, default:ON;
M=0/1/2, way of alarming, 0 :GPRS only, 1: SMS+GPRS, 2 : GPRS+SMS+phone call, default:1;
SOSALM,OFF#Close the SOS alarm.
SOSALM#Check the parameters of the alarm.
31Set the dialing timesCALL,N#N=1~3, default:3, times to dial all numbers;
CALL#Check the parameters of the dialing.
32Set the moving alarmMOVING,[A][,R][,M]#A=ON/OFF, default:OFF; R=100~1000, moving radius, unit: meter, default: 300;
M=0~2, 0: GPRS only, 1: SMS+GPRS, 2: GPRS+SMS+phone call, default:1;
MOVING,OFF#Close the moving alarm.
MOVING#Check the status and the parameters of the moving alarm.
33Set the overspeed alarmSPEED,[A][,B][,C][,M]#A=ON/OFF, open or close over speed alarm, default:OFF
B=5~600 (second), time interval, default:20 (second)

C=1~255(km/h), speed limit, default:100(km/h);
M=0/1, way of alarm, 0 : GPRS only, 1: SMS+GPRS, default:1.
SPEED#Check the parameters of over speed.
34Set sensitivity of SENSORLEVEL,<A>#A=1-5: sensiticity range; default:2
LEVEL# check the current sensitivity of sensor
35Set the LED sleep modeLEDSLEEP,[A]#A=ON/OFF, LED sleep mode control,
ON: start LED sleep mode, OFF:LED normal display, default:ON;
LEDSLEEP#Check the parameters of LED sleep mode.
37Set the instruction passwordPWDSW,[A]#A= ON, enable the instruction password.
PWDSW,[password],[B]#Numbers and letters mix inputs supported for instruction password, at least 1 character, no more than 19 characters, default:000000;
B=OFF, disable the instruction password.
38Revise the instruction passwordPASSWORD,[A],[B]#A=old password, numbers and letters mix inputs supported, at least 1 character, no more than 19 characters, default:000000;

B=new password, numbers and letters mix inputs supported, at least 1 character, no more than 19 characters.
RECOVER,[A]#A=instruction password, numbers and letters mix inputs supported, at least 1 character, no more than 19 characters, default:111111.
40Set the SMS forwardingFW,[A],[B]#A=phone number, phone number to send;
B=SMS content, content to forward. Only SOS can use this command.
GT06N Settings SMS Command
